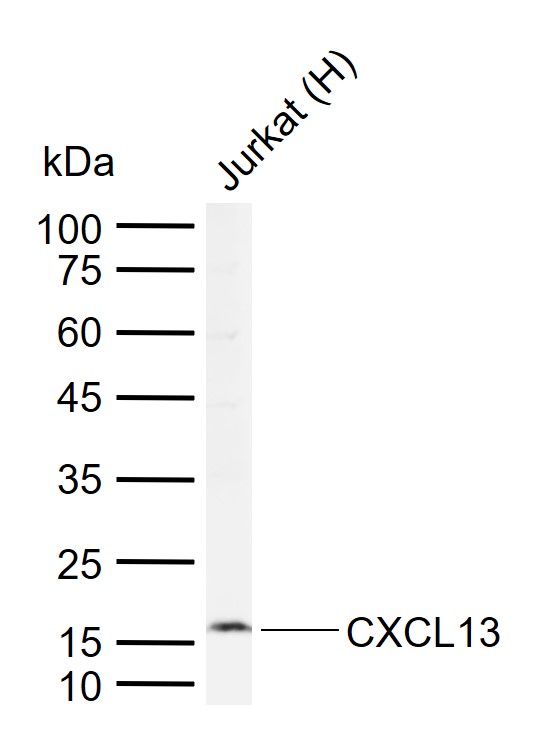

Sample: Lane 1: Human Jurkat cell lysates Primary: Anti-CXCL13 (bs-2553R) at 1/1000 dilution Secondary: IRDye800CW Goat Anti-Rabbit IgG at 1/20000 dilution Predicted band size: 10 kDa Observed band size: 16 kDa

Paraformaldehyde-fixed, paraffin embedded (human liver carcinoma); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37°C for 30min; Antibody incubation with (CXCL13) Polyclonal Antibody, Unconjugated (bs-2553R) at 1:400 overnight at 4°C, followed by a conjugated secondary (sp-0023) for 20 minutes and DAB staining.

Image was kindly submitted by Erica Pimenta from UMDNJ. Human breast tumor tissue stained with Rabbit Anti-CXCL13 Polyclonal Antibody (bs-2553R)

Blank control（black line）:HepG2. Primary Antibody (green line): Rabbit Anti-CXCL13 antibody (bs-2553R) Dilution:1ug/Test; Secondary Antibody（white blue line）: Goat anti-rabbit IgG-AF488 Dilution: 0.5ug/Test. Isotype control（orange line）: Normal Rabbit IgG Protocol The cells were fixed with 4% PFA (10min at room temperature)and then permeabilized with 90% ice-cold methanol for 20 min at -20℃, The cells were then incubated in 5%BSA to block non-specific protein-protein interactions for 30 min at room temperature .Cells stained with Primary Antibody for 30 min at room temperature. The secondary antibody used for 40 min at room temperature. Acquisition of 20,000 events was performed.
